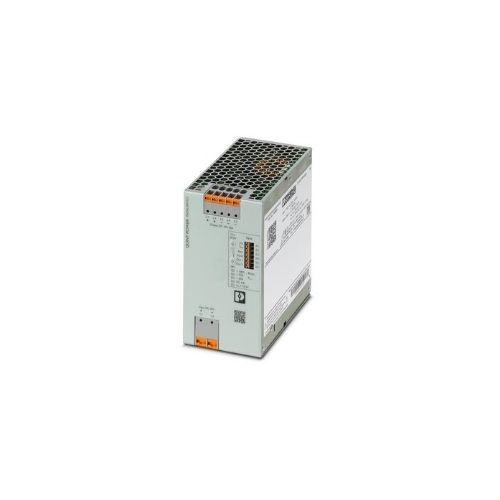

QUINT4-PS/24DC/24DC/20/PT | 2910121 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 24 V DC -25% ... +40%, Nominal output voltage 24 V DC, LED indicator, UL approved
| Complete Electronics Part No | 2910121 |
|---|---|
| Manufacturers Part No. | 2910121 |
| Nominal Input Voltage | 24 V DC |
| Nominal Output Voltage | 24 V DC / 20 A |
| Output Setting Range | 24 V DC to 29.5 V DC |
Description
DIN Rail DC/DC Converter for DIN rail mounting
Primary-switched QUINT DC/DC converter
- With SFB (Selective Fuse Breaking)
- Nominal input voltage range: input: 24 V DC -25 % ... +40 %
- Current Consumption: 27 A (24 V DC)
- Recommended Breaker: 50 A (Characteristic B, C or comparable)
- Input Connection method: Push in Connection
- Nominal Output Voltage: 24 V DC ±1 %
- Setting range of the output voltage 18 V DC ... 29.5 V DC (> 24 V DC, constant capacity)
- Nominal Output current: 20 A (-40 °C ... 60 °C)
- Connection in parallel: YES
- Connection in series: YES
- Output Connection method: Push in Connection
- LED signaling
- Housing Material: Metal
- Operating temperature: -25°C ... 70°C (> 60°C Derating: 2,5 %/K)
- Width: 70 mm
- Height: 130 mm
- Depth: 125 mm
- Ingress protection: IP20
- Weight (excluding packing): 1200g
- Customs tariff number: 85044030
- GTIN: 4055626537481
- UL Approved, Shipbuilding
- Country of origin: Thailand
