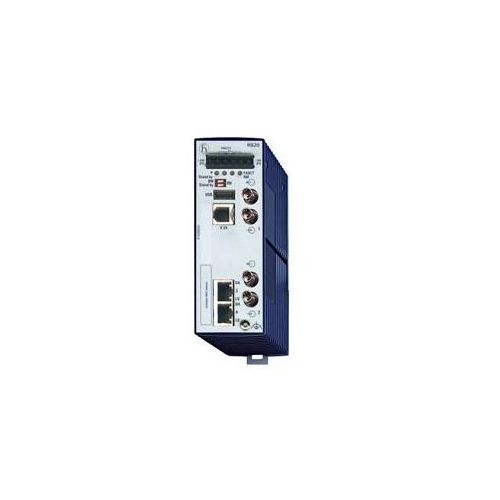

RS20-0400M4M4SDAEHH | 943434066 | Industrial Ethernet
4 Port Fast ETHERNET-switch according to IEEE 802.3, 2 x standard 10/100 BASE TX, RJ45, 2 x Uplink Port: 100BASE-FX, MM-ST
| Complete Electronics Part No | 943434066 |
|---|---|
| Manufacturers Part No. | 943 434-066 |
| Ethernet Product Type | Managed Switch |
| Total 10/100 (RJ45) Ports | 2 |
| Total 100 Base Ports | 2 |
| Total Ethernet Ports | 4 |
| FX (Optical) Port Connector Type | ST |
| FX (Optical) Cable Type | Multi Mode (MM) |
| Operating Voltage | 12/24/48 V DC & 24V AC |
| Mounting | DIN Rail |
| IP Rating | IP20 |
Description
RS20-0400M4M4SDAEHH
Fast ETHERNET-switch according to IEEE 802.3
- Compact,
- Managed,
- Industrial switch for DIN rail
- Store-and-forward-switching
- Fanless design,
- Software Layer 2 Enhanced,
- Ports: 4 x FE 4 ports in total
- Uplink Port: 100BASE-FX, MM-ST
- Uplink Port: 100BASE- FX, MM-ST
- 2 x standard 10/100 BASE TX, RJ45
- Operating voltage 12/24/48 V DC (9,6-60) V and 24 V AC (18-30) V
- Operating temperature 0º to +60ºC
- Dimensions (W x H x D) 47 x 131 x 111
- Mounting DIN Rail
- Weight 400 g
***Product Discontinuation Notice***
Last Order Date: Dec 31st 2023
Last Delivery Date: June 30th 2024
Last Service Date: June 30th 2029
Accessories to order separately:
Rail power supply RPS 30, RPS 80 EEC or RPS 120 EEC,
Terminal cable,
Network management HiVision, auto-configuration adapter (ACA21-USB),
19″installation frame
