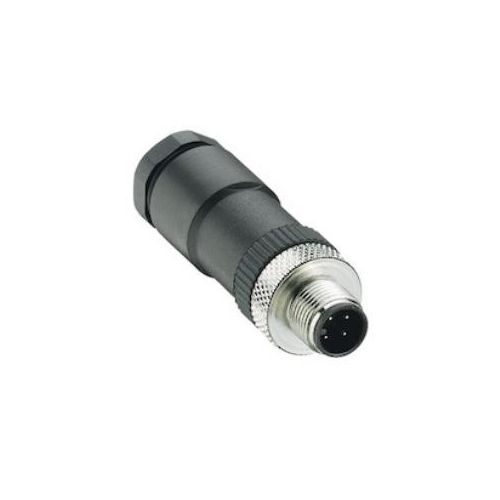

RSC 4/DUO | 18236 | Connector
Field Attachable Connector, Duo, M12 male, 4 pole
| Complete Electronics Part No | 18236 |
|---|---|
| Manufacturers Part No. | 18236 |
| Type | Field Attachable Connector |
| Termination | Screw |
| Coded Option (Circular) | A |
| Male/Female | Male M12 |
| Cable Entry | Straight |
| Number of poles | 4 |
| Rated Voltage | 250V |
| Rated Current | 4A at 40°C |
| IP Rating | IP67 |
Description
RSC 4/DUO
Field attachable Duo connector
- For connection of two cables (2x3 / 2x5)
- M12 male connector, Straight version
- With threaded joint
- Screw assembly terminal
- 4 Pole
