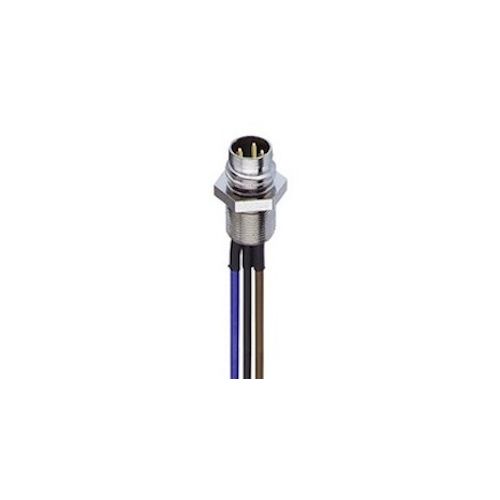

RSMF 3/0,5 M | 11672 | Connector
Receptacle Connector, 3 pole, Front panel mounting, Assembled Stranded Wire, Solder contacts Potted with Epoxy, length 0.5 metres
| Complete Electronics Part No | 11672 |
|---|---|
| Manufacturers Part No. | 11672 |
| Type | Recptacle Connector |
| Mounting | Front Mounting |
| Cordset Type | Single Ended |
| Male/Female | Male M8 |
| Cable Entry | Straight |
| Number of poles | 3 |
| Rated Voltage | 60V (nominal) |
| Rated Current | 4A at 40°C |
| Cable Length | 0.5 Metre |
| IP Rating | IP67 |
Description
RSMF 3/0,5 M
Receptacle Connector
- M8 Male connector
- Front Panel mounting
- Assembled Stranded Wire
- Solder contacts Potted with Epoxy
- 3 Pole
- Chassis side thread M8 x 0.5 (Panel nut RSFK 8)
- 0.5 Metres
