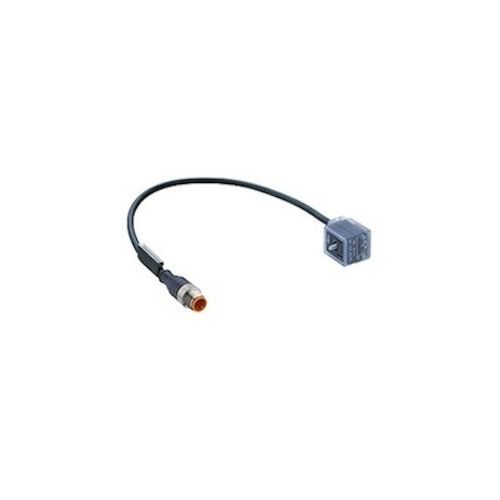

RST 5-3-VB 1A-1-1-226/1 M | 17686 | Cordset Form B IND
M12 - Valve connector Actuator cordset, double-ended
| Complete Electronics Part No | 17686 |
|---|---|
| Manufacturers Part No. | 17686 |
| Type | Cordset |
| Cordset Gender M12 | M12 Male - Valve Connector |
| Cable Entry | Straight |
| Number of poles | 3 |
| Valve Connector Form | B |
| Rated Voltage | 32V |
| Rated Current | 4A at 40°C |
| Cable Length | 1 Metre |
| Led Colour | Yellow |
| Cable Jacket | PUR |
| IP Rating | IP67 |
Description
RST 5-3-VB 1A-1-1-226/1 M
M12 Actuator cordset, Length 1meter,
- Double-ended M12 male connector with self-locking threaded joint and Valve connector
- Similar to DIN EN 175301-803,
- Industry standard form B,
- 3 poles,
- Cable exit 0°
- Varistor voltage protection (LED yellow)
