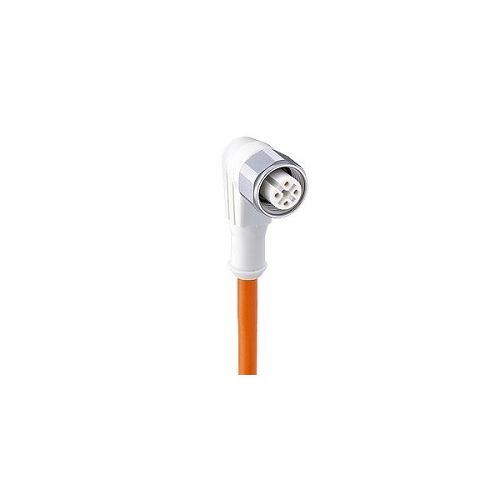

WRKWT 5-522/5 M | 934734014 | Cordset
Actuator/sensor cordset, single, M12 female, right angle, 5 pole, cable length 5 metres
| Complete Electronics Part No | 934734014 |
|---|---|
| Manufacturers Part No. | 934 734-014 |
| Type | Cordset |
| Cordset Type | Single Ended |
| Cordset Gender M12 | M12 Female |
| Coded Option (Circular) | A |
| Cable Entry | Right Angled |
| Number of poles | 5 |
| Rated Voltage | 60V |
| Rated Current | 4A at 40°C |
| Cable Length | 5 Metres |
| Cable Jacket | TPE-V |
| IP Rating | IP67 / 68 / 69K |
Description
WRKWT 5-522/5 M
Actuator/sensor cordset, M12 female connector, right angled version
- With self-locking threaded joint and moulded cable, hexagon screw in stainless steel
- Especially designed for use in wash down applications
- 5 poles
- TPE-V jacket
- Flame-retardant
- Orange
- 5 meters
- IP67, IP68, IP69k (IEC 60529)
