EXP-0911/07/P | EXP091107P | Bulgin | Connector

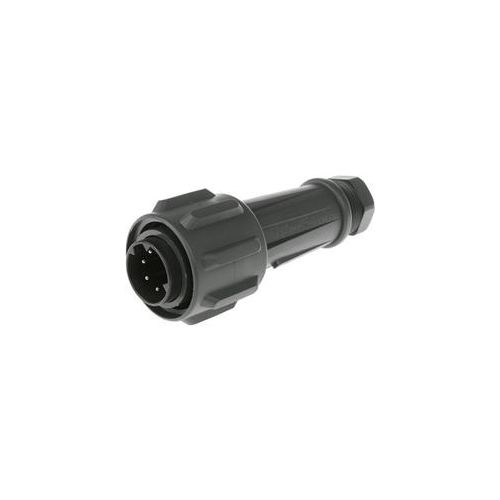

EXP Series EXPlora 7 Pole Male Flex Cable Connector
| Complete Electronics Part No | EXP091107P |
|---|---|
| Manufacturers Part No. | EXP-0911/07/P |
| Type | Cable Plug |
| Mounting | Cable |
| Number of poles | 7 |
| Termination | Screw |
| Male/Female | Male |
| Housing Construction | Plastic |
| Cable Entry | Straight |
| Cable Diameter | 13-15mm, 7-13mm with additional gland pack |
| Rated Voltage | 430V |
| Rated Current | 16A |
| IP Rating | IP68 |
Description
EXP-0911/07/P
EXP Series EXPlora 7 Pole Male Flex Cable Connector
- ATEX approval for Zone 2 & 22 applications
- Voltage: 430Vac/dc
- Current: 16Amps
- Gender: Male
- Contact: Pins
- Termination: Screw
- Temperature Range -20 °C/+55°C
- IP Rating: IP68 when mated
- Accepts 13-15mm cable dia. as standard & 7-13mm with optional gland pack
- Mates with EXP-0921,EXP-A921,EXP-0931,EXP-0941 ranges
- Accessory: Sealing Cap EXP-0990 & Gland Pack EXP-0980
