EXP-0921/07/S | EXP092107S | Bulgin | Connector

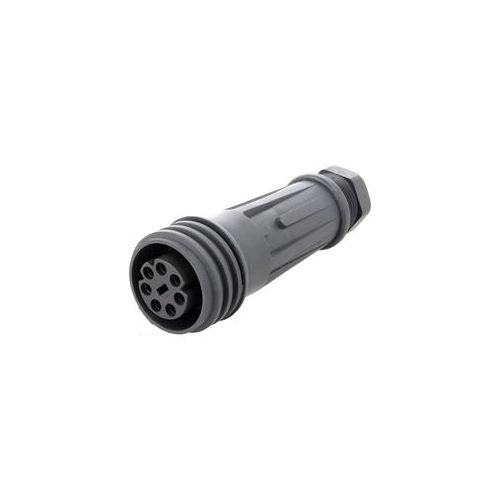

EXP Series EXPlora 7 Pole Female In-Line Flex Cable Connector
| Complete Electronics Part No | EXP092107S |
|---|---|
| Manufacturers Part No. | EXP-0921/07/S |
| Type | Cable Socket |
| Mounting | Cable |
| Number of poles | 7 |
| Termination | Screw |
| Male/Female | Female |
| Housing Construction | Plastic |
| Cable Entry | Straight |
| Cable Diameter | 13-15mm, 7-13mm with additional gland pack |
| Rated Voltage | 430V |
| Rated Current | 16A |
| IP Rating | IP68 |
Description
EXP-0921/07/S
EXP Series EXPlora 7 Pole Female In-Line Flex Cable Connector
- ATEX approval for Zone 2 & 22 applications
- Voltage: 430Vac/dc
- Current: 16Amps
- Gender: Female
- Contact: Sockets
- Termination: Screw
- Temperature Range -20 °C/+55°C
- IP Rating: IP68 when mated
- Accepts 13-15mm cable dia. as standard & 7-13mm with optional gland pack
- Mates with EXP-0911,EXP-A911 ranges
- Accessory: Sealing Cap EXP-0991 & Gland Pack EXP-0980
