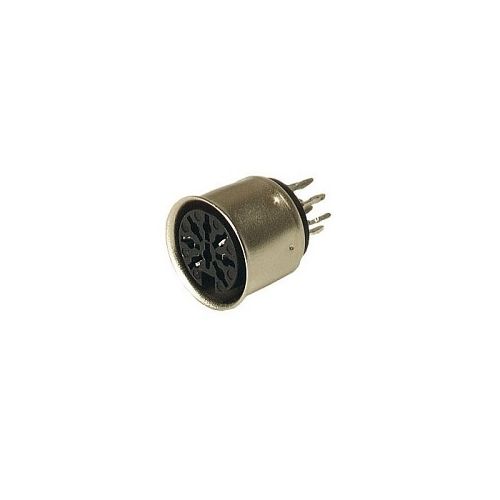

MAB 8 SN V | 932664200 | 8 Pin DIN Socket
8 Pin DIN Female Panel Mounted Socket for PCBs ***Discontinued***
| Complete Electronics Part No | 932664200 |
|---|---|
| Manufacturers Part No. | 932 664-200 |
| Type | DIN Socket |
| Number of poles | 8 |
| Termination | PCB Mount |
| Mounting | Panel Mount |
| PCB Connector Mounting | PCB Straight |
| Socket / PIN | Socket |
| Pole Arrangement DIN | DIN 45326 |
| Rated Voltage | 34V |
| Rated Current | 4A |
| IP Rating | IP30 |
Description
MAB 8 SN V
Panel-mounted socket for PCBs
- Plug-in direction parallel to the PCB
- Solder
- Female
- 8 pole
- Rated voltage: AC/DC 34 V
- Rated current: 4 A
***This product is being discontinued***
Last Order Date June 30th 2022
