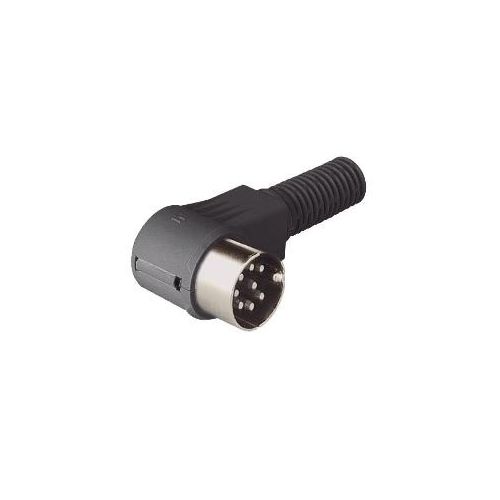

MAWI 80 SB UM Black | 931741100 | 8 Pin DIN Plug
8 Pin DIN Right Angled Cable Plug
| Complete Electronics Part No | 931 741-100 |
|---|---|
| Manufacturers Part No. | 931741100 |
| Type | DIN Plug |
| Number of poles | 8 |
| Termination | Solder |
| Mounting | Cable |
| Socket / PIN | PIN |
| Pole Arrangement DIN | DIN 41524 (pins 1-5) |
| Cable Entry | Right Angled |
| Rated Voltage | 34V |
| Rated Current | 4A |
| IP Rating | IP30 |
Description
MAWI 80 SB UM Black
Male, 8 pole angled plug with insulated handle
- Solder joint.
- Cable diameter 6.5 mm.
- Rated voltage AC/DC 34 V.
- Rated current 4 A.
