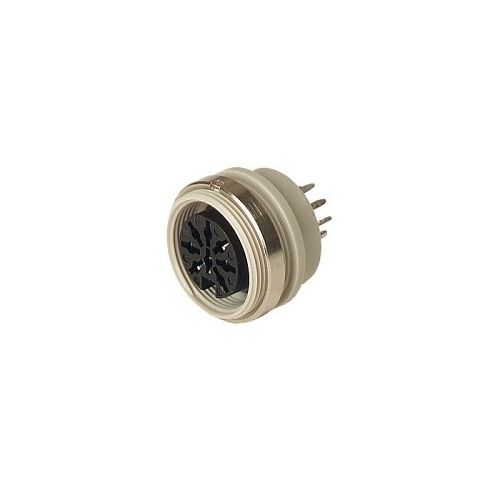

MAB 8500 SN V | 933058517 | 8 Pin DIN Socket
8 Pin DIN Female Panel Mounted Socket with locking screw
| Complete Electronics Part No | 933058517 |
|---|---|
| Manufacturers Part No. | 933 058-517 |
| Type | DIN Socket |
| Number of poles | 8 |
| Shielding | Not Shielded |
| Termination | Solder |
| Mounting | Panel Mount with Locking Ring |
| Socket / PIN | Socket |
| Pole Arrangement DIN | DIN 45326 |
| Rated Voltage | 34V |
| Rated Current | 4A |
| IP Rating | IP30 |
Description
MAB 8500 SN V
Panel-mounted socket with locking screw
- For installation in rear panels
- Max panel thickness 4 mm
- Solder joint
- Un-shielded
- Female, 8 pole
- Rated voltage: AC/DC 34 V
- Rated current: 4 A
