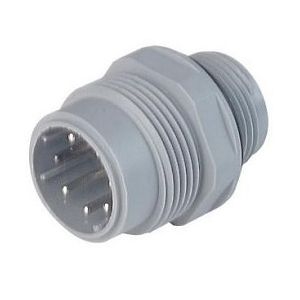

N6R AM 2 M20 | 931592004 | Connector
6 Pole + Earth Panel mount connector with contact bearer in the casing. M20
| Complete Electronics Part No | 931 592-004 |
|---|---|
| Manufacturers Part No. | 931592004 |
| Type | Panel Mount Connector |
| Standard | DIN 43651 |
| Termination | Crimp |
| Number of poles | 6+PE |
| Male/Female | Male |
| Voltage | AC/DC 250V |
| Rated Current | 10A |
| Cable Entry | Straight |
| IP Rating | IP65 |
Description

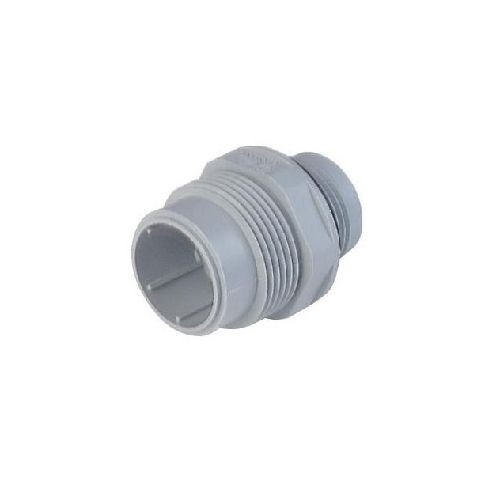

N6R AM 2 M20
Panel-mounted connector with contact bearer in the casing.
- Male, 6 pole + Earth. M20x1.5.
- Suitable cables: 0.5 mm2 to 1.5 mm2.
- Rated current:10 A,
- Rated voltage: AC/DC 250 V.
- Crimps not included – please order separately
