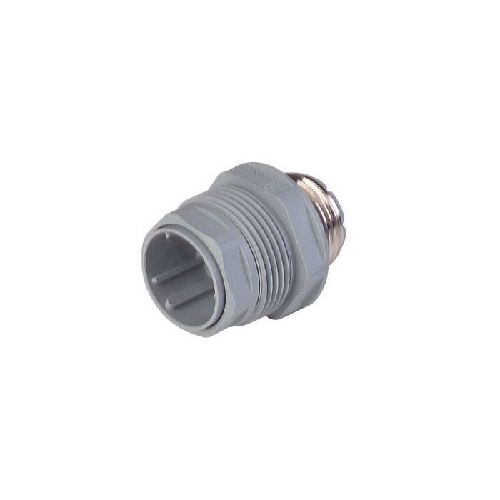

N6R AM 5 | 931773001 | Connector
6 Pole + Earth Panel mount connector with metal screw-in insert in the casing, PG 13.5
| Complete Electronics Part No | 931 773-001 |
|---|---|
| Manufacturers Part No. | 931773001 |
| Type | Panel Mount Connector |
| Standard | DIN 43651 |
| Termination | Crimp |
| Number of poles | 6+PE |
| Male/Female | Male |
| Voltage | AC/DC 250V |
| Rated Current | 10A |
| Cable Entry | Straight |
| Cable Gland Size | PG13.5 |
| IP Rating | IP65 |
Description
N6R AM 5
anel-mounted connector with metal screw-in insert in the casing (metal segment).
- Male, 6 pole + Earth. PG 13.5.
- Suitable cables: 0.5 mm2 to 1.5 mm2.
- Rated current:10 A.
- Rated voltage: AC/DC 250 V
- Crimps not included – please order separately
