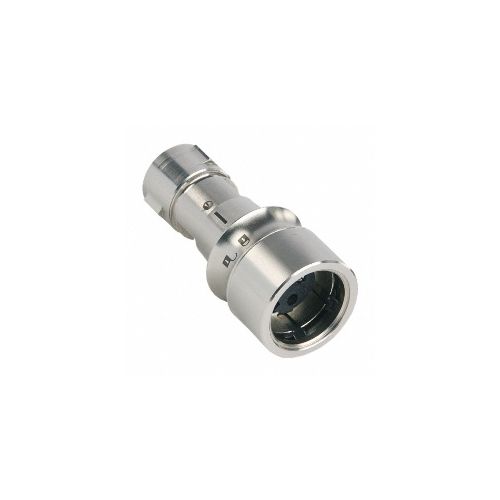

PXM6010/03S/ST/0507 | PXM601003SST0507 | Bulgin 6000 Series
Flex connector, 3 pole socket contacts
| Complete Electronics Part No | PXM601003SST0507 |
|---|---|
| Manufacturers Part No. | PXM6010/03S/ST/0507 |
| Type | Cable Socket |
| Number of poles | 3 |
| Cable Gland Size | 5.0-7.0 mm |
| Termination | Screw |
| Male/Female | Female |
| Housing Construction | Metal |
| Cable Entry | Straight |
| Rated Voltage | 277V |
| Rated Current | 16A |
| IP Rating | IP66 / 68 / 69K |
Description
PXM/6010/03/S/ST/0507
Flex connector, 3 pole socket contacts
- Voltage: 277Vac/dc
- Current: 16Amps
- Gender: Female
- Application: Cable Mount
- Contacts: Sockets
- Termination: Screw
- Wire Size: 1.5mm
- Operating Temp. Range: –40°C to +120°C
