PXM6012/03P/CR | PXM601203PCR | Bulgin 6000 Series

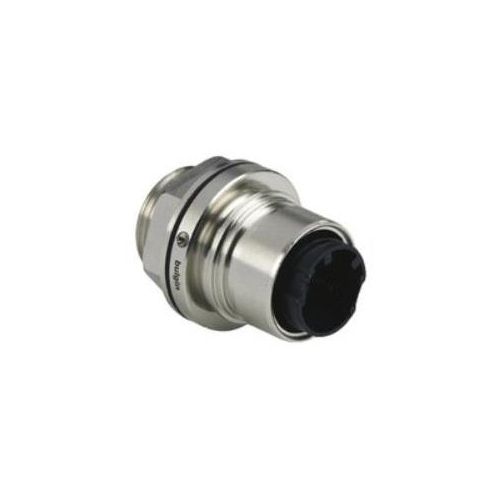

6000 Series Buccaneer Metal 3 Pole Male Front Panel Mount Connector
| Complete Electronics Part No | PXM601203PCR |
|---|---|
| Manufacturers Part No. | PXM6012/03P/CR |
| Type | Panel Mount Connector |
| Mounting | Front Mounting |
| Number of poles | 3 |
| Termination | Crimp |
| Male/Female | Male |
| Housing Construction | Metal |
| Cable Entry | Straight |
| Rated Voltage | 277V |
| Rated Current | 16A |
| IP Rating | IP66 / 68 / 69K |
Description
PXM601203PCR
Metal 3 Pole Male Front Panel Mount Connector
- Mates with Flex Cable Connector
- Voltage: 277Vac/dc
- Current: 16Amps
- Gender: Male
- Application: Front Panel Mount
- Contacts: Pins
- Termination: Crimp, excluded, order separately
- Temperature: –40° to +120°C
- IP Rating: Water and Dust Proof to IP66 / IP68 / IP69K
- Approvals: UL, CSA, VDE & CCC
